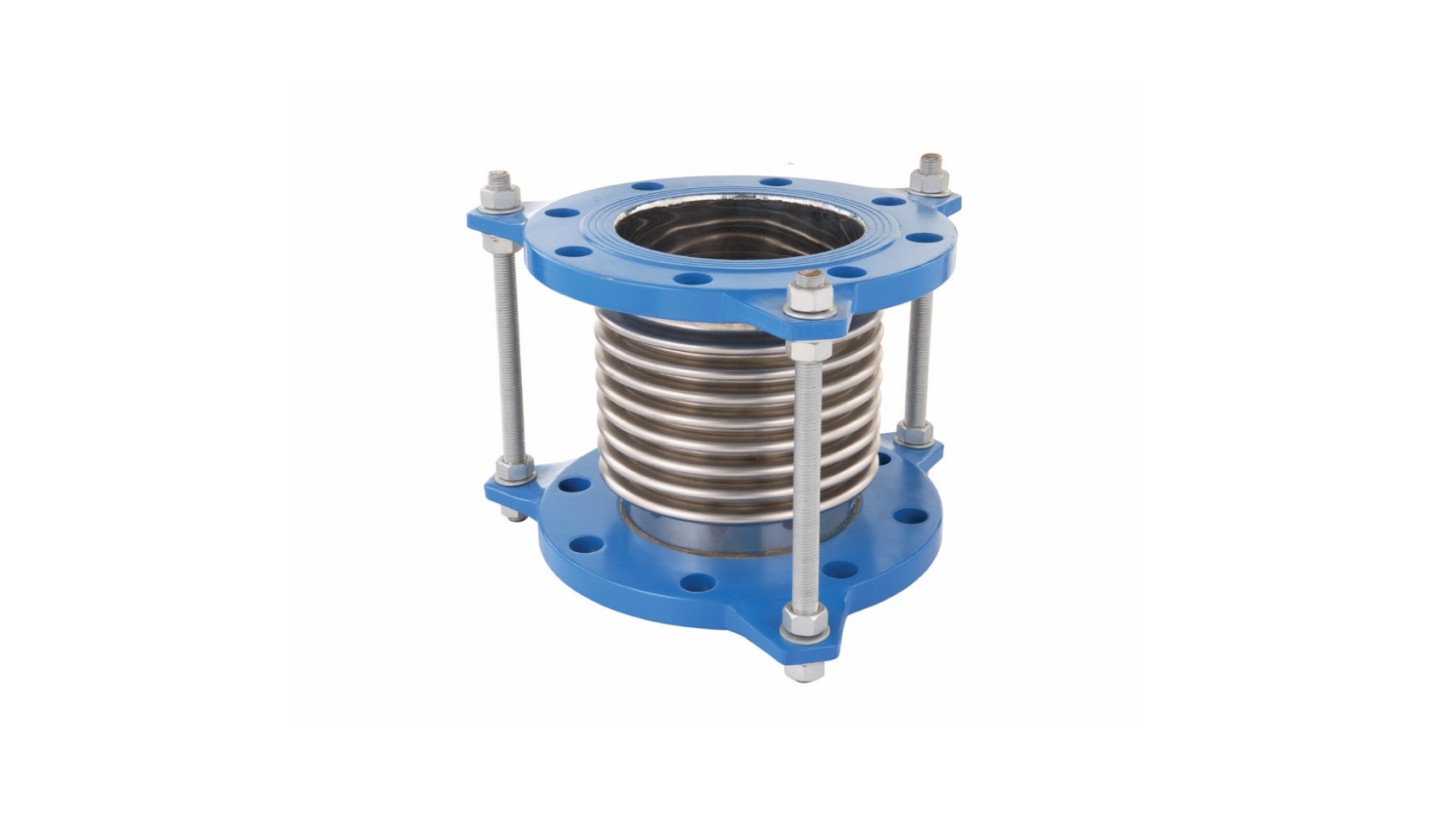

Corrugated compensator
Reference data sheet
DN50-DN600
PN16
0℃-85℃
carbon steel
Shell: 24 bar Seat:17.6bar
Flanged to ANSI B16.1 Class 125 and BS 1560 3.2
summary
The corrugated compensator belongs to a kind of compensation element. The effective expansion and contraction deformation of bellows is used to absorb the size change caused by thermal expansion and cold contraction of pipelines, pipes and vessels, or to compensate the axial, transverse and angular displacement of pipelines, conduits and containers. It can also be used for noise reduction and vibration reduction. It is widely used in modern industry.
Product features
Compensation absorption pipe axial, transverse, angular cold and hot deformation.
Expansion and contraction of bellows compensator is convenient for installation and disassembly of valve pipe.
Absorption of equipment vibration, reduce the impact of equipment vibration on the pipeline.
It can absorb the deformation of pipeline caused by earthquake and ground subsidence.
