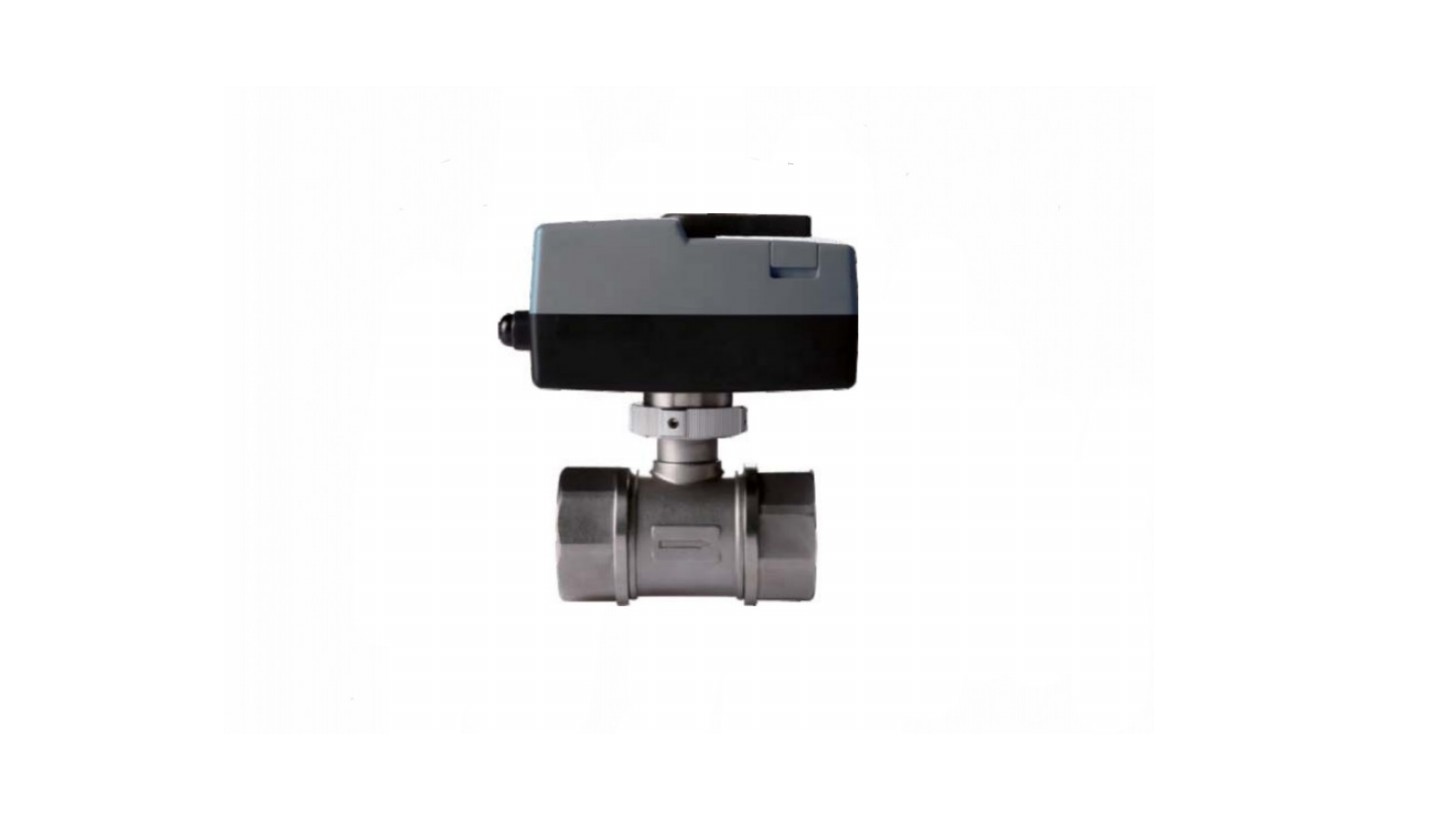

Electric regulating ball valve
Reference data sheet
DN15-DN50
PN25
0℃-85℃
stainless steel
Shell: 24 bar Seat:17.6bar
Taper threaded BS EN 10266 (ISO 7-1) formerly BS 21
summary
Electric control ball valve is widely used in central air conditioning, heating, water treatment, industrial processing industry and other systems of fluid control. The actuator receives the standard adjustment model or three state floating-point signal and rotates the ball to the specified position.
characteristic:
-The unique conical intake design realizes accurate equal percentage flow control characteristics
-Simple flow channel design, not easy to block, more safe and reliable use
-High flow capacity, low resistance loss
-Double seal design, no leakage and double insurance
-Ultra quiet channel design ensures quiet environment
-High shut-off pressure, high pressure level
-Equipped with manual switch and opening indication
