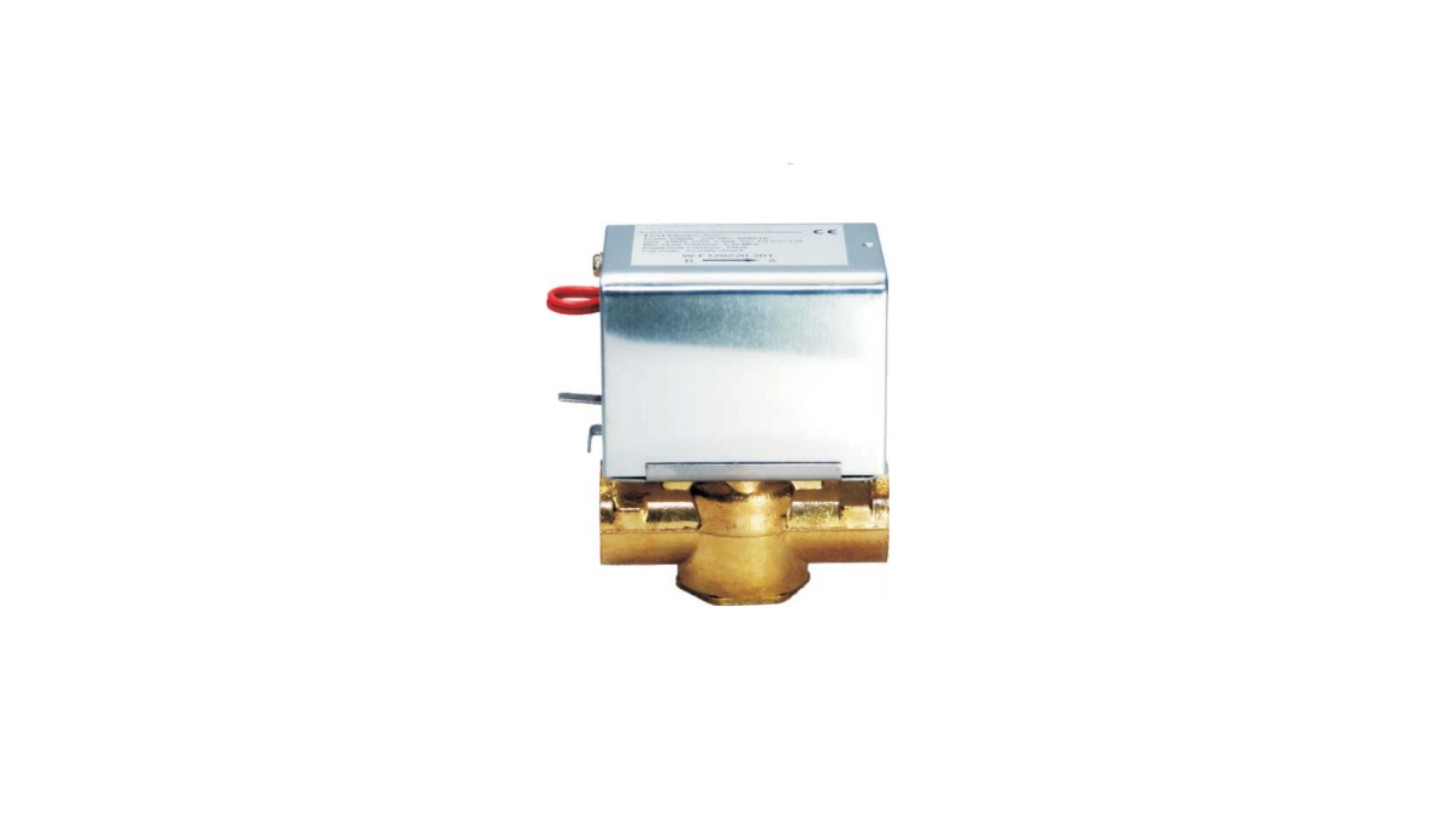

Electric two way valve
Reference data sheet
DN15-DN25
PN16
0℃-85℃
brass
Shell: 24 bar Seat:17.6bar
Taper threaded BS EN 10266 (ISO 7-1) formerly BS 21
summary
The electric two-way or three-way valve is suitable for FCU cooling or heating pipeline. By opening and closing the pipe, the valve can effectively adjust the room temperature. The valve actuator has the function of spring automatic reset. If the actuator is suddenly de energized, the spring will help the actuator to reset and close automatically.
· On/off control ,both normally closed two-way structure and diverting three-way structure are available
· Fully enclosed one-way hysteresis synchronous motor drive with water-proof function
· Spring auto-reset function enables automatic shutoff when an emergent power loss happens
· Removable actuator for convenient repair and maintenance
· Rotary motion valve disc
· High shutoff pressure
