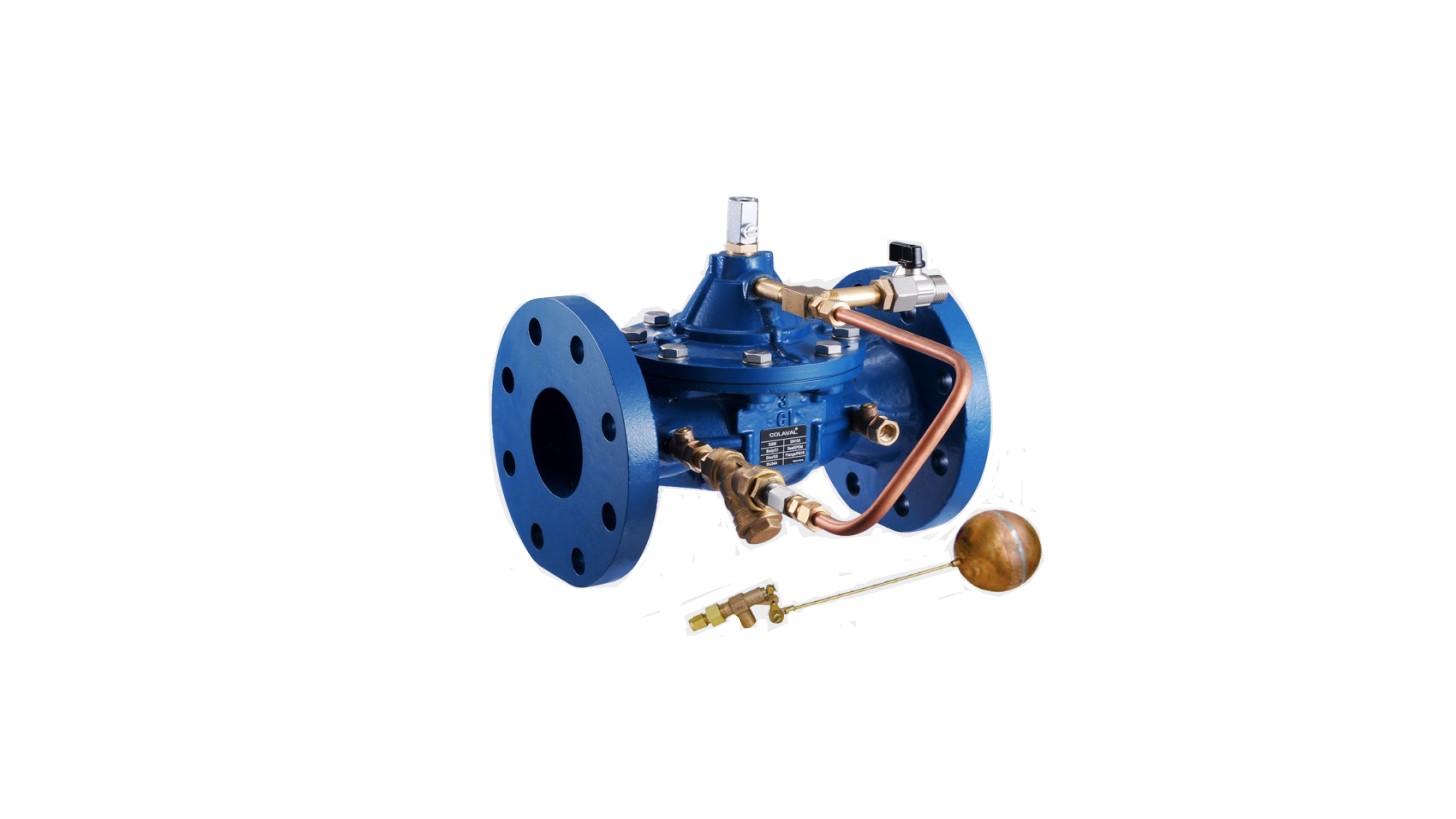

remote control float valve
Reference data sheet
DN50-DN600
PN16
0℃-85℃
Ductile iron
Shell: 24 bar Seat:17.6bar
Flanged to ANSI B16.1 Class 125 and BS 1560 3.2
summary
The remote control float valve is composed of hydraulic control valve main valve, float switch and piping; its main function is to control the liquid level of the pool or elevated water tower; the valve is installed at the inlet of the pool or elevated water tower, depending on the float ball to sense the liquid level, and then switch on and off the main valve. The valve has reliable sealing and long service life.
Product features:
Hydraulic control, without external driving force;
The main valve has only one moving part, so the failure rate is low;
Diaphragm structure, no friction, high control sensitivity;
Separate installation of main valve and floating ball;
The floating ball has nothing to do with the diameter of the main valve;
